How Is Ductwork Rated? Understanding HVAC Efficiency Standards

When homeowners think about HVAC performance, they often focus on the unit itself, whether it’s the air conditioner or furnace. However, the system that distributes air throughout your home plays an equally important role. This is where ductwork rating becomes critical.

Your duct system is responsible for delivering conditioned air efficiently to every room. If it’s poorly designed, leaking, or improperly insulated, even the most advanced HVAC unit won’t perform as expected. In fact, inefficient ductwork can significantly increase energy consumption while reducing comfort.

In this guide, we’ll break down how ductwork is evaluated, what metrics matter most, and how improving your system can lead to better airflow, lower energy bills, and enhanced indoor comfort.

Ductwork rating refers to how well a duct system performs in delivering air efficiently and consistently throughout a building. It involves assessing several performance factors such as airflow, leakage, insulation, and system design.

A well-rated duct system ensures:

• Balanced airflow across all rooms

• Minimal energy loss

• Proper temperature distribution

• Reduced strain on HVAC equipment

A poor rating, on the other hand, often leads to uneven temperatures, high energy bills, and reduced system lifespan. This is why residential ductwork evaluation is essential, especially for older homes or systems showing signs of inefficiency.

Ductwork efficiency directly impacts how effectively your HVAC system operates. Even if your system has a high efficiency rating, poor duct performance can undermine its effectiveness.

According to the U.S. Department of Energy, proper duct sealing and energy efficiency can significantly improve HVAC performance and reduce energy loss by up to 30%.

Key benefits of high HVAC ductwork efficiency include:

• Lower monthly utility bills

• Faster and more consistent heating/cooling

• Improved indoor air quality

• Reduced wear and tear on HVAC components

In short, your ductwork is the backbone of your HVAC system’s performance.

1. Airflow Efficiency (CFM)

Airflow efficiency measures how effectively air moves through your ducts. It’s typically calculated in CFM (cubic feet per minute).

A properly functioning system should:

• Deliver consistent airflow to each room

• Maintain comfortable indoor temperatures

• Avoid pressure imbalances

Low airflow efficiency HVAC may result from:

• Undersized or oversized ducts

• Blockages or debris

• Poor system design

2. Duct Leakage (CFM25 / % Leakage)

Duct leakage is one of the most important components of ductwork rating.

It is measured using:

• CFM25 (air leakage at 25 Pascals)

• Percentage of total airflow lost

General benchmarks:

• Below 10% = Excellent

• 10-20% = Acceptable

• Above 20% = Inefficient

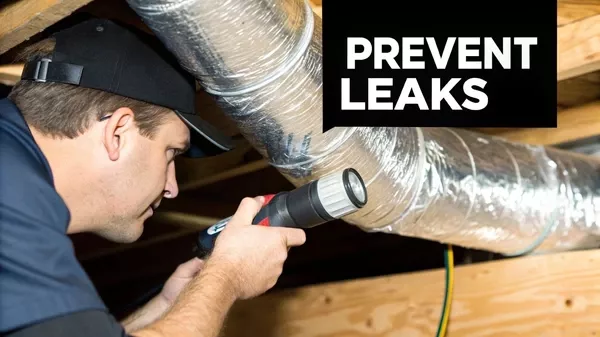

A professional duct leakage test identifies hidden leaks and weak points.

For best practices, refer to how to seal HVAC ducts properly.

3. Static Pressure

Static pressure HVAC measures the resistance to airflow inside the duct system.

High static pressure may indicate:

• Blocked or restricted ducts

• Improper duct sizing

• Dirty filters or coils

Low pressure can signal air leaks or insufficient airflow.

Maintaining balanced pressure ensures optimal system performance and longevity.

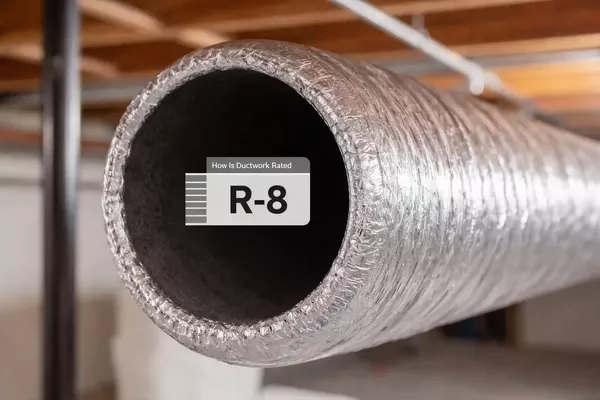

4. Insulation (R-Value)

Duct insulation rating is determined by its R-value, which measures resistance to heat transfer.

Higher R-values:

• Reduce heat gain or loss

• Improve system efficiency

• Maintain consistent air temperatures

Uninsulated ducts, especially in attics, can cause significant energy waste.

5. Duct Design and Layout

The design and layout of your duct system significantly influence performance.

Well-designed ductwork:

• Uses properly sized ducts

• Minimizes bends and turns

• Balances airflow between supply and return

Poor design often leads to:

• Uneven temperatures

• Weak airflow

• Increased HVAC strain

A duct leakage test is performed using specialized tools such as:

• Duct Blaster – measures air escaping from ducts

• Blower Door Test – evaluates overall home leakage

This type of air duct performance testing helps detect:

• Hidden leaks

• Loose connections

• Damaged duct sections

Testing provides accurate data used to improve duct performance.

Static pressure plays a crucial role in airflow efficiency. When airflow is restricted, pressure builds up, forcing your HVAC system to work harder.

Common causes of high static pressure:

• Clogged air filters

• Undersized ducts

• Closed or blocked vents

Consequences include:

• Reduced airflow

• Higher energy consumption

• Increased equipment wear

Balancing pressure ensures efficient operation and consistent comfort.

Proper insulation prevents temperature loss as air travels through ducts.

Benefits of proper insulation:

• Maintains air temperature from source to room

• Reduces HVAC workload

• Improves energy efficiency

If your system lacks proper insulation, upgrading through professional insulation services can significantly improve performance.

Poor ductwork can negatively affect your entire HVAC system.

Energy Loss

Air leaks and poor insulation waste conditioned air, increasing energy costs.

Uneven Temperatures

Rooms may feel too hot or too cold due to inconsistent airflow.

Increased System Strain

Your HVAC system must work harder, leading to:

• Higher repair costs

• Shorter lifespan

• Frequent breakdowns

Recognizing early warning signs can prevent costly repairs.

Look out for:

• High energy bills

• Weak airflow from vents

• Hot and cold spots

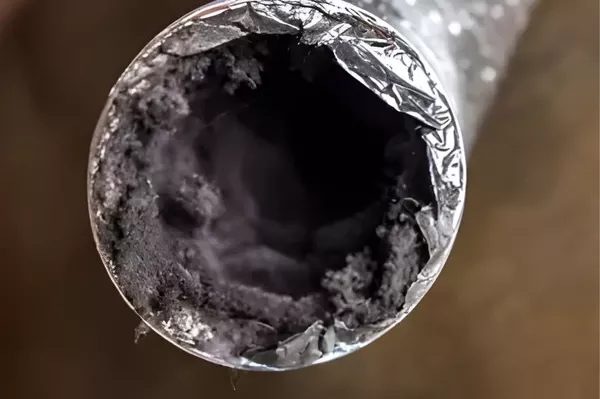

• Excess dust buildup

• Noisy duct operation

These signs indicate the need for a residential ductwork evaluation.

A professional inspection includes a comprehensive evaluation of your system.

Typical steps:

1. Visual inspection of ducts

2. Airflow measurement (CFM testing)

3. Leakage testing

4. Static pressure analysis

5. Insulation assessment

Technicians may recommend:

• duct repair services

• air duct cleaning

Improving your ductwork rating involves addressing key inefficiencies.

Sealing Leaks

Use professional sealing techniques to prevent air loss.

Upgrading Insulation

Install higher R-value insulation to reduce energy loss.

Redesigning Duct Layout

Optimize duct size and layout for better airflow.

Routine Maintenance

Regular inspections ensure long-term performance.

Ductwork rating is different from HVAC equipment ratings like:

• SEER (Seasonal Energy Efficiency Ratio)

• AFUE (Annual Fuel Utilization Efficiency)

Even a high-efficiency system can underperform if ductwork is inefficient. Both must work together for optimal results.

Repair if:

• Minor leaks or insulation issues

• Localized damage

Replace if:

• Severe leakage

• Poor system design

• Extensive wear and tear

A professional assessment helps determine the best option.

While duct improvements require upfront costs, they offer long-term benefits:

• Reduced energy bills

• Improved indoor comfort

• Increased home value

• Extended HVAC lifespan

Investing in ductwork upgrades pays off over time.

Understanding ductwork rating is essential for improving HVAC efficiency, reducing energy costs, and maintaining indoor comfort. From airflow and leakage to insulation and design, each factor plays a critical role in system performance.

If your home shows signs of inefficiency, addressing ductwork issues early can prevent costly problems later.

👉 Schedule a Professional Ductwork Inspection Today

Ductwork efficiency is measured using airflow (CFM), leakage rates, static pressure, and insulation performance through specialized testing tools.

A good duct leakage rate is below 10%. Anything higher indicates inefficiency and potential energy loss.

Airflow is calculated in CFM based on duct size, system capacity, and room requirements.

Yes. Poor ductwork can reduce HVAC efficiency by up to 30%, increasing energy costs and reducing comfort.

Static pressure measures airflow resistance within ducts. High pressure indicates restrictions or poor design.

Ductwork should be inspected every 2–3 years or whenever performance issues arise.
